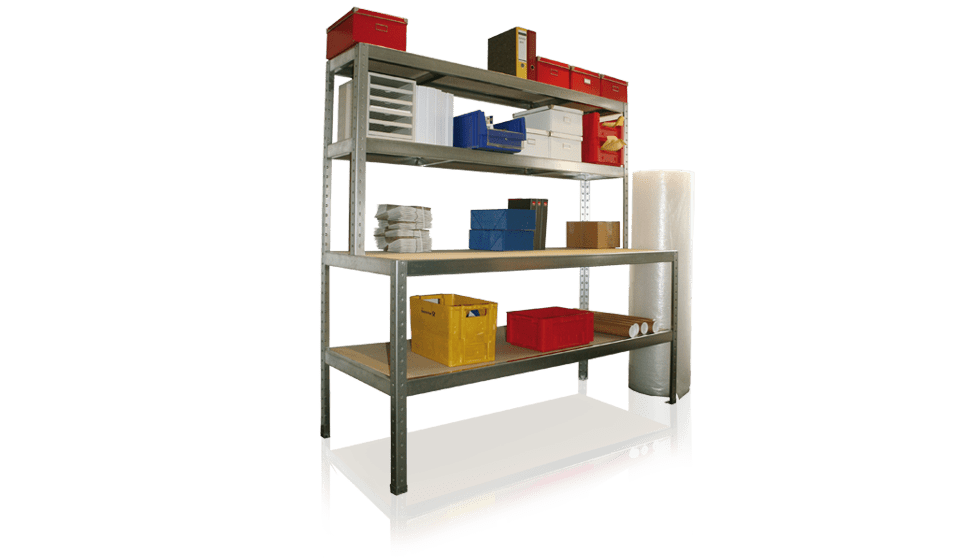

Simple design wide-span rack with equal-sided symmetrical angle sections.
- Complete rack
- Simple to assemble with boltless mounting
- All-round edge protection of the wooden decks by countersinking in the stepped beam
- Planning dimensions: Nominal dimensions = Actual dimensions
- Assembly as basic rack unit only
- Bay load: up to 800 and 1,200 kg
- Shelf load: up to 400 kg
(up to 200 kg for stacking shelf, depth 400 mm) - Stacking shelves: Depth 400 mm
- Working height: Packing table 970 mm
- Intermediate shelf height-adjustable in 50 mm steps
- Stepped beam in longitudinal and depth directions
- Two supports under each deck, only one support under top frame
- Surfaces of profiles and beams galvanized
Safety: Racks with a height/depth ratio of ≥ 5: 1 must be secured to prevent tilting (for wall and floor anchorings, please refer to our storage systems order catalogue). Shelf / bay load data are based on evenly distributed loads. Bay load data apply to rack rows with 3 or more bays.
